Technical Details


R80XL Website.jpg
  • Key characteristics

  • All parts are designed to ISO shipping container dimensions

  • Economic and efficient installation by using bolt and pin connection to avoid welding and conservation on destination jobsite

  • Low maintenance and operation cost

  • 4 year warranty and worldwide service support included

  • Full automatic control with cabin-door monitoring

  • Automatic mechanical or electrical opening and closing of the cabin doors

  • Nonstop variable motion with up to four revolutions per hour

  • Capacity of up to approx 1,700 passengers per hour

  • Stop / hold function for disabled passengers

  • State of the art communication system between passenger cabin and operator control

  • Easy and friendly interface for the operator with TFT touch screens

  • Redundant control and network systems

  • Qualified Operator / Maintenance Authorization identification system (ID card & finger print)

  • Redundant / emergency evacuation system in case of a power failure

Stationary AND Transportable Version

  • Wheel height:  ± 78 m

  • Wheel diameter: ± 74 m

  • Height main axle: ± 40 m

  • Number of cabins: 27 (16 passengers)

  • Number of spokes: 27

  • Revolutions: Variable speed from 2 to 4 revolutions per hour

  • Drive & Control system: SIEMENS 8 x AC motors & drives dual redundant PLC controlled

  • Power supply: 3 AC /N/PE ; 400/230V 50/60 Hz

  • Base width & depth: 29.3 m (approx. 96 ft) x 36.5 m (approx. 120 ft)

Cabins

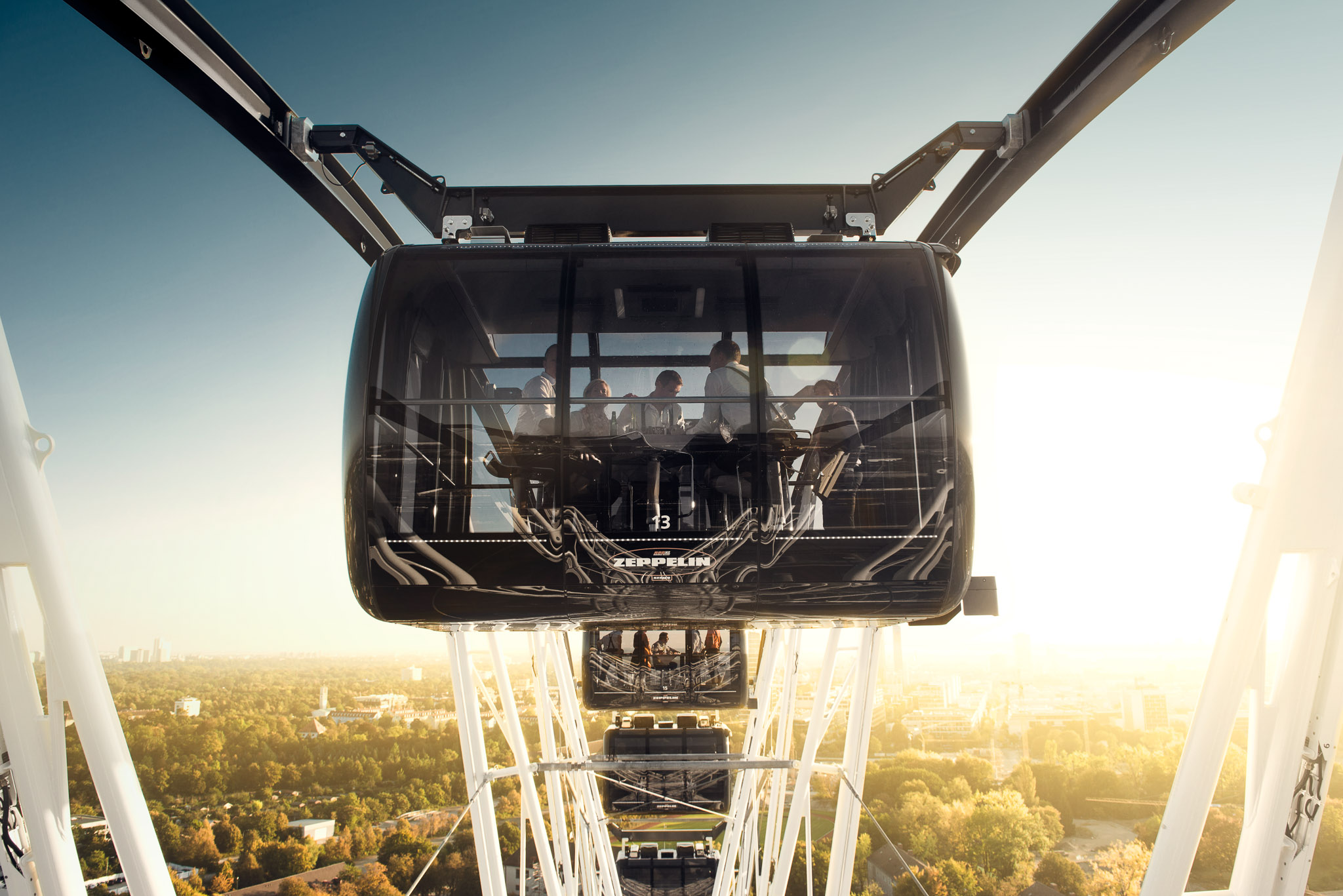

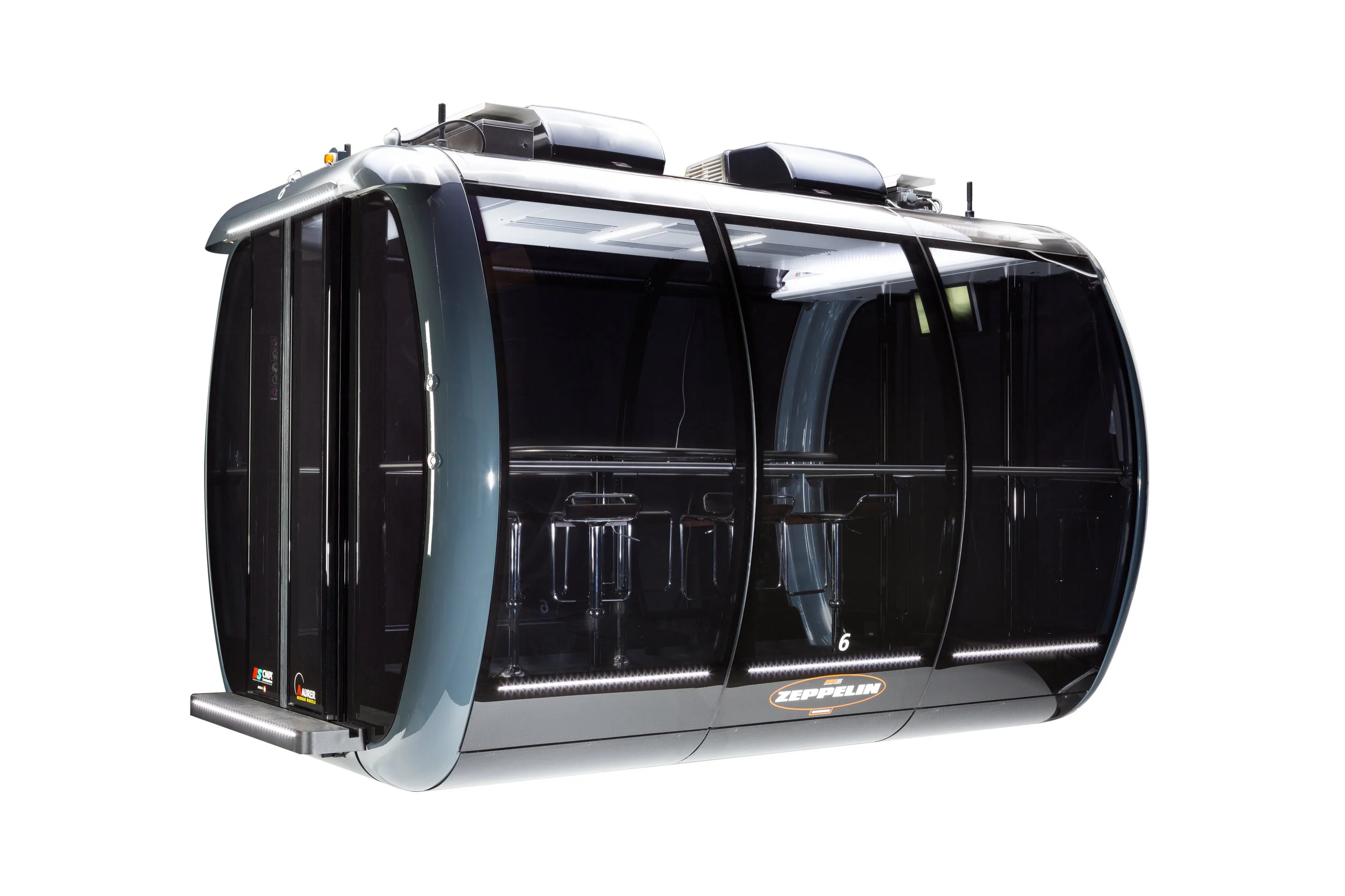

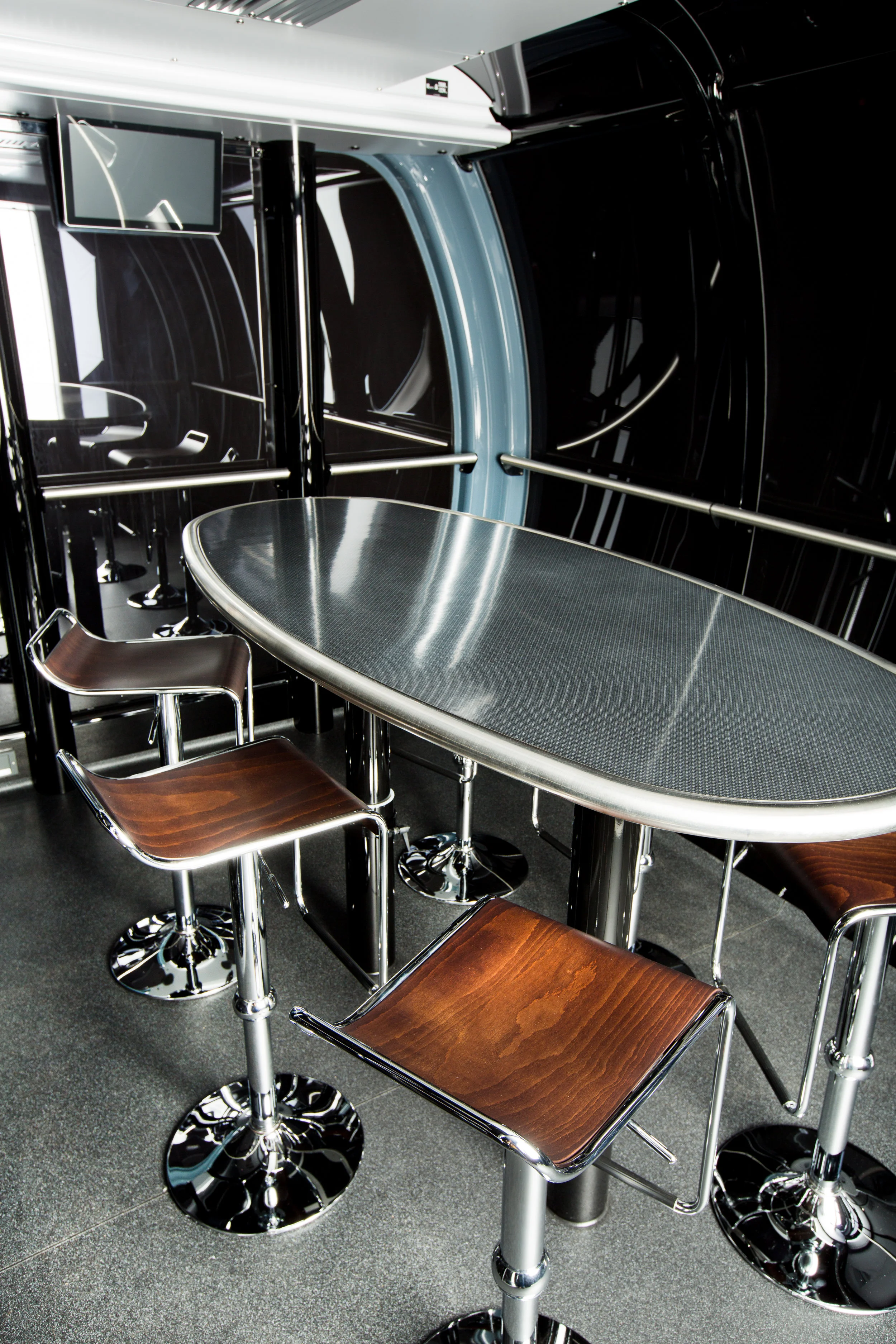

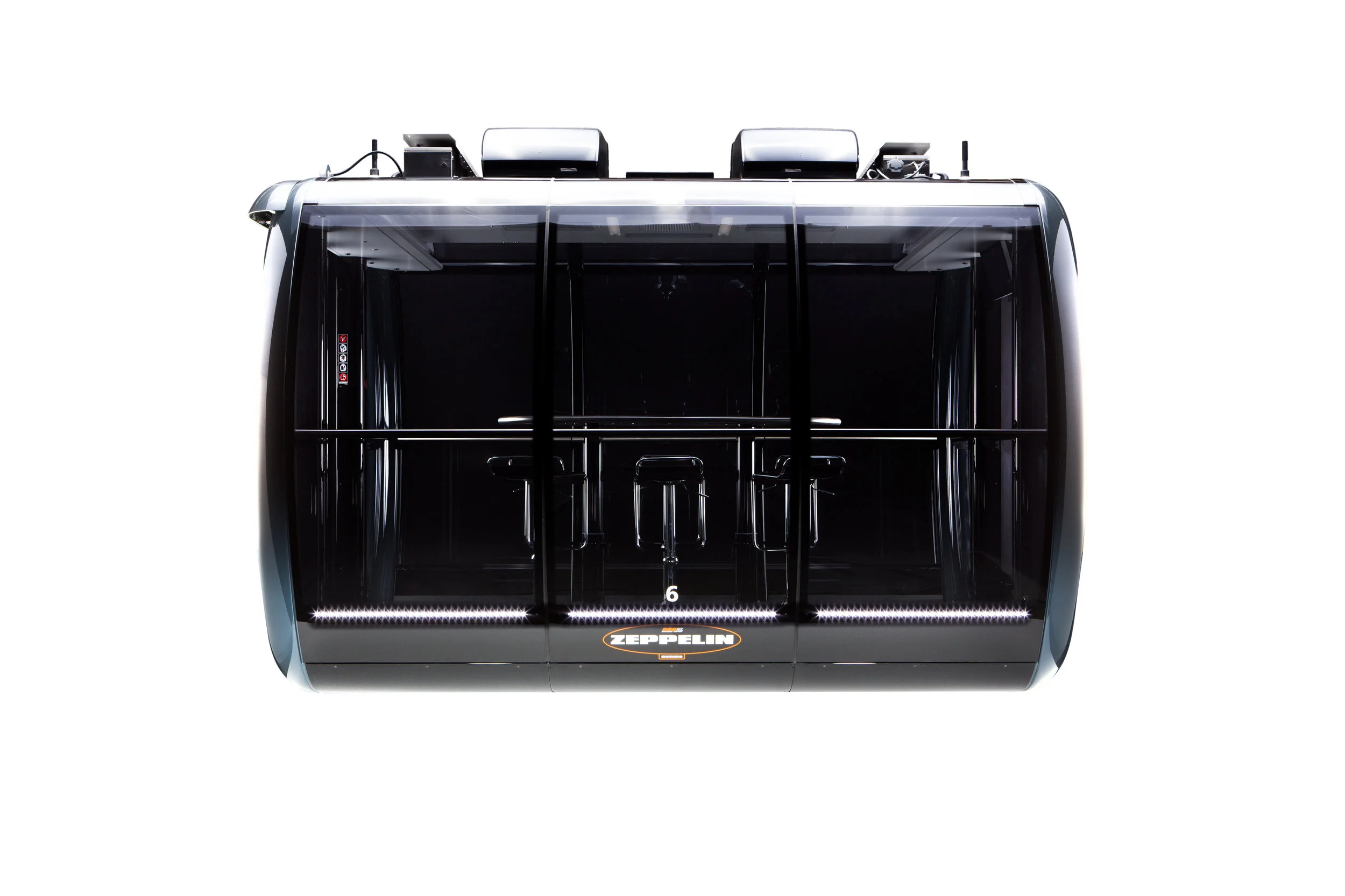

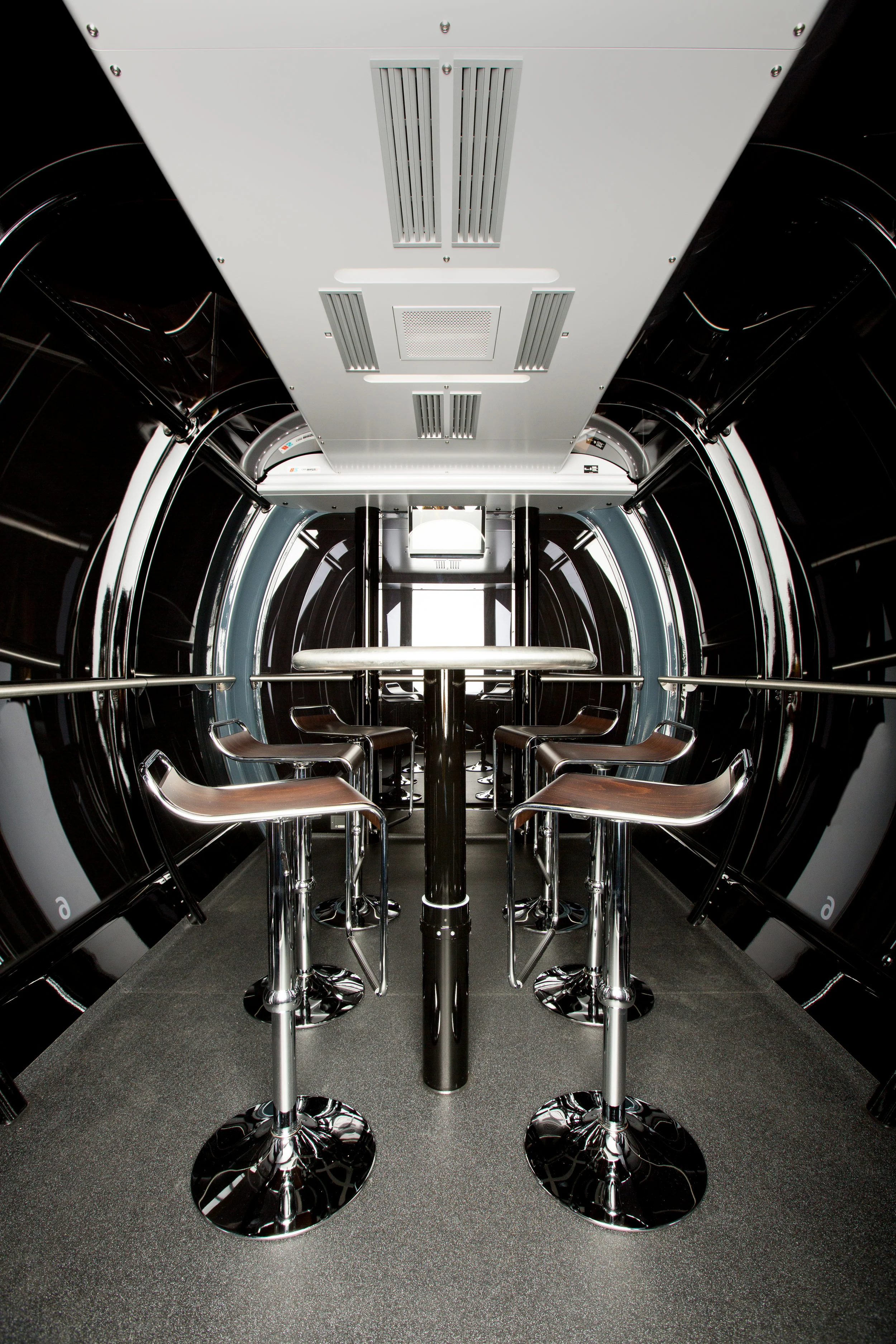

16 Passenger Zeppelin Cabin

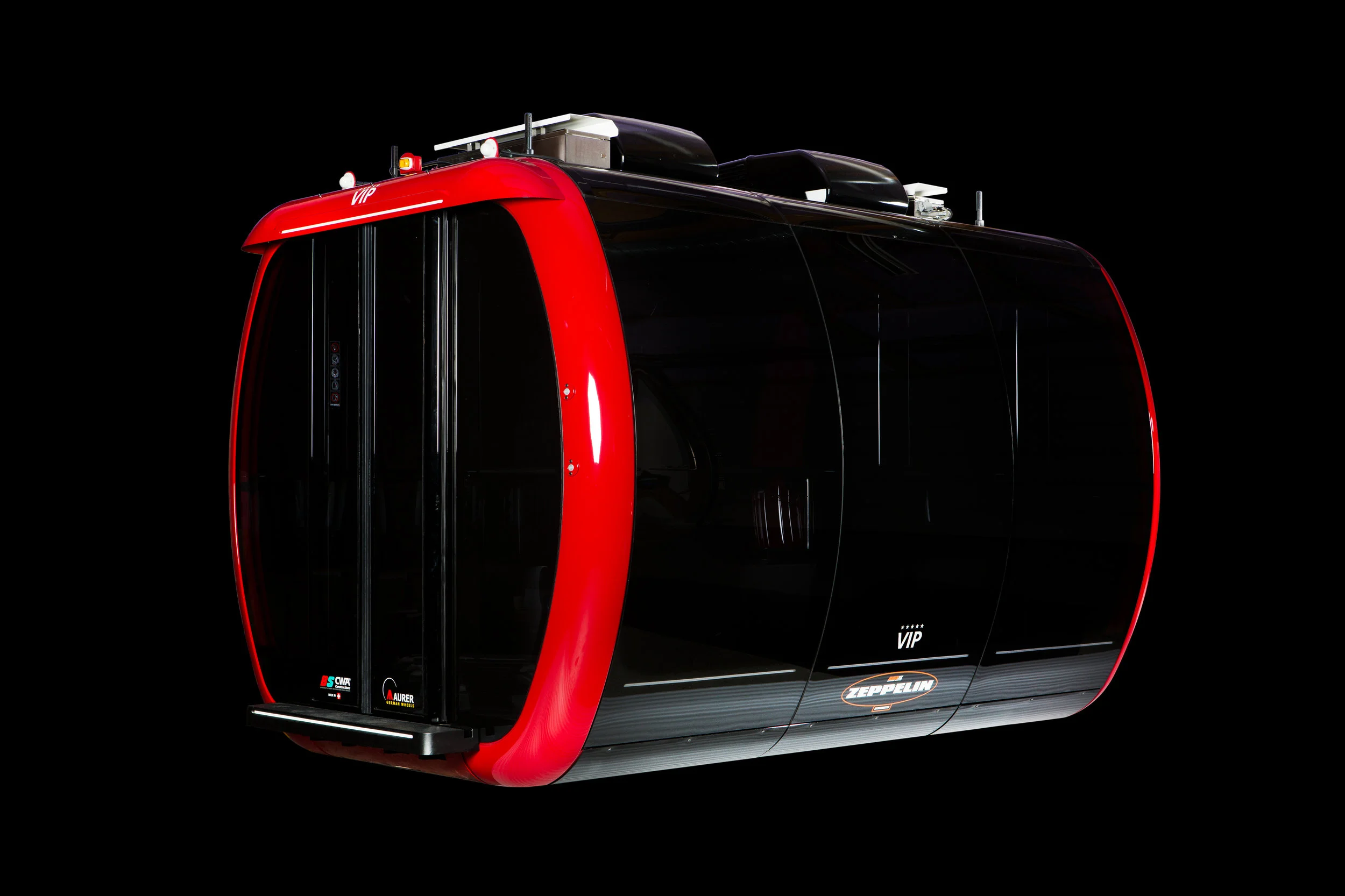

6 Passenger Zeppelin VIP Cabin
